USBoard-USS5-IP

📥 Download as PDF

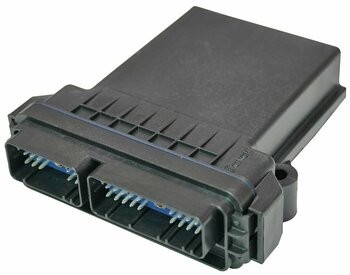

The USBoard-USS5-IP is a variant of the USBoard-USS5. It was designed for more demanding environmental conditions and mounting outside of a protective cabinet. Most of the basic functionality and properties of the USBoard-USS5-IP are identical to the USBoard-USS5. This documentation thus mainly describes the differences between the two boards.

Tip

The Graphical User Interface is also the same as for the USBoard-USS5 and can be found at Graphical User Interface.
