Technical Data

USBoard-USS5

  • Supply voltage from +9 VDC up to +60 VDC, max. 4 W
  • Digital communication via CAN and USB, optional RS-232
  • Optical indicators for warning and alarm distance
  • Solid state relay outputs for warning and alarm distance (max. 60 V, 0,5 A)
  • Four analogue inputs (0 V – 5 V)
  • Weight: 71 g
  • Storage temperature range: -40 °C – 85 °C
  • Operation temperature range: 0 °C – 70 °C
  • Customs tariff number: 9031 9000
  • Order number: X101

Ultrasonic Sensor Bosch USS5

../../_images/angle.jpg

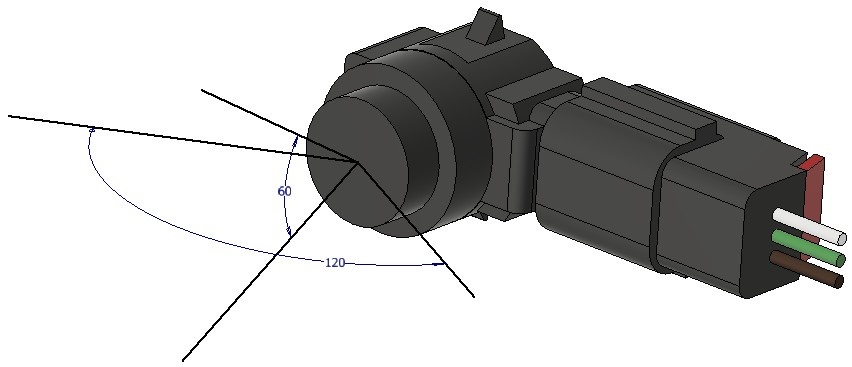

  • Theoretical field of view: 120° x 60°, symmetrical
  • Realistic field of view at maximum distance: 10° x 10°, symmetrical
  • Please check our FOV test results below.
  • Operating frequency: 48 kHz
  • Range: 0.2 m up to 3.3 m
  • Detection of objects closer than the minimum distance
  • Indication of empty measurement range (no echo)
  • Customs tariff number: 9031 8080
  • Order number: X210

USS5 Field of View

We have tested the USS5 real world field of view with different objects and configurations. So far we did tests with

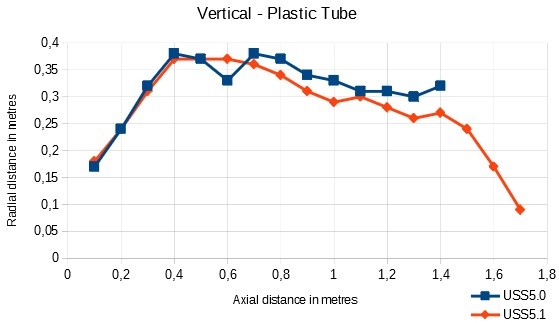

  • a plastic tube (diameter 75 mm, height 1.75 m)

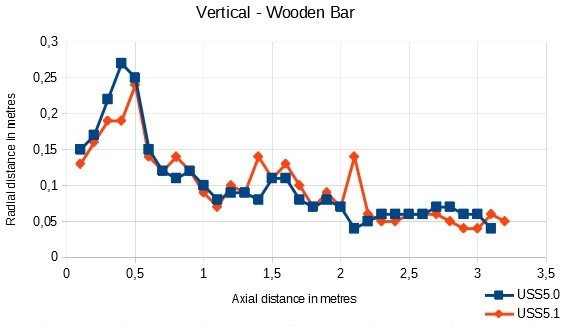

  • a wooden bar (width 0.1 m, height 1.77 m)

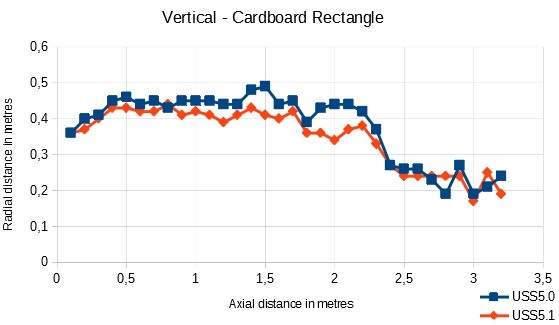

  • a cardboard rectangle (width 0.6 m, height 0.4 m)

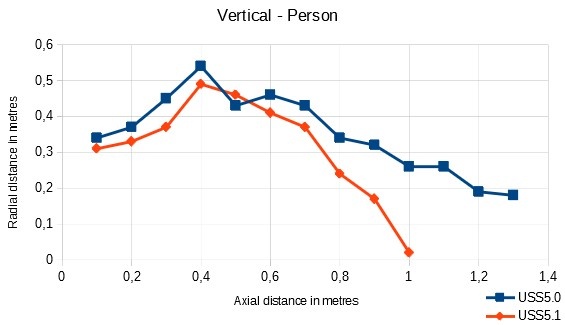

  • a human (height 1.8 m)

You can download our full data set here.

Note

Please note that the data on this page are only for reference and are no assurance of any product features. Please perform your own tests to check the suitability of the USBoard-USS5 and the USS5 sensors for your specific application.
