Connectors

TE Connectivity - HE14

Pins	TE Connectivity	Farnell	RS Components
3 pins, 1 row	281838-3	429582	532-333
4 pins, 1 row	281838-4	429594	532-349
5 pins, 1 row	281838-5	429600	532-355
6 pins, 2 rows	281839-3	429650	532-406
8 pins, 2 rows	281839-4	429661	532-412
10 pins, 2 rows	281839-5	429673	532-428
12 pins, 2 rows	281839-6	429685	532-434

Crimp contacts	TE Connectivity	Farnell	RS Components
AWG 28-24	182734-2	429715	532-456

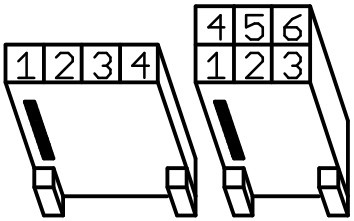

In Neobotix products the pin assignment of the HE14 connectors is as shown below.

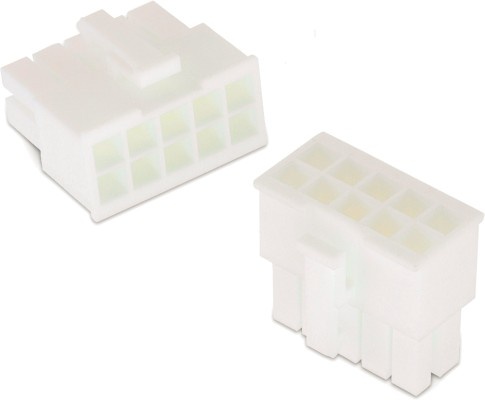

Würth Elektronik - MPC4

Please check the Würth Elektronik online catalogue for details on the MPC4.

Pins (in 2 rows)	Würth Elektronik
2	649002113322
4	649004113322
6	649006113322
8	649008113322
10	649010113322
16	649016113322

Crimp contacts	Würth Elektronik
AWG 24-18	64900613722

In Neobotix products the pin assignment of the MPC4 connectors is as shown below.

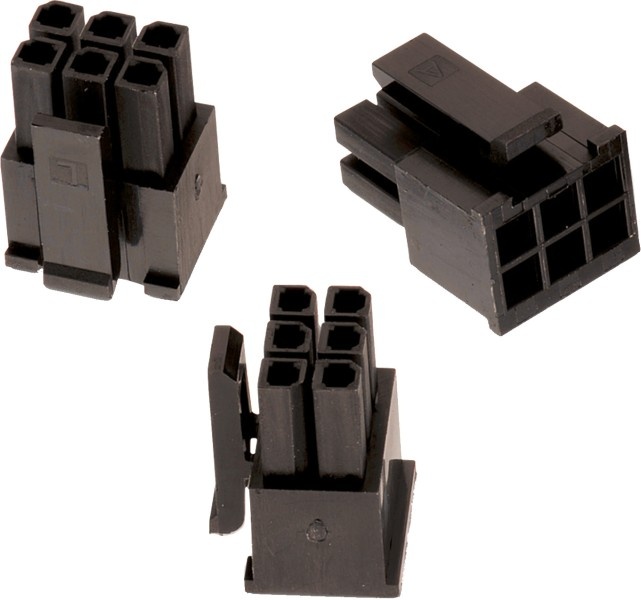

Würth Elektronik - MPC3

Please check the Würth Elektronik online catalogue for details on the MPC3.

Pins (in 2 rows)	Würth Elektronik
4	662004113322
6	662006113322
12	662012113322

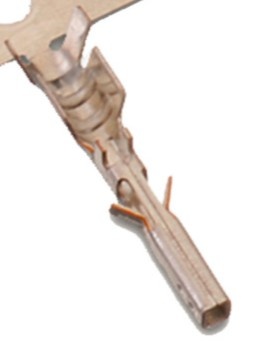

Crimp contacts	Würth Elektronik
AWG 24-20	66200113722

In Neobotix products the pin assignment of the MPC3 connectors is as shown below.
